Bell Mounts

LBM Light Duty Bell Mounts

This mount offers a low profile, easy to install design with an integral fail-safe device to provide shock and failure protection for mobile, marine or seismic stationary applications. When the rubber works in shear and compression it provides large static deflections, low natural (to 8 hz) and high isolation.

This range is designed with a fail-safe function making it an ideal solution for applications where safety is paramount and can accommodate loads between approx. 7kg to approx. 84kg per Mount.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Gensets
Marine power engines
Diesel engines
Pumps
HVAC

Products can be loaded in :

Bell mount in use.

Height adjusters

Optional modifications / extras:

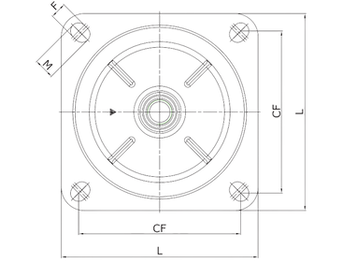

SKU	A	B	P	F x M	CF	L	S
LBM623110XW	60	31	M10	8.3X16	75/90	106	3
LBM623110W	60	31	M10	8.3X16	75/90	106	3
LBM623110K	60	31	M10	8.3X16	75/90	106	3
LBM623110M	60	31	M10	8.3X16	75/90	106	3
LBM623110H	60	31	M10	8.3X16	75/90	106	3
LBM623112W	60	31	M12	8.3X16	75/90	106	3
LBM623112K	60	31	M12	8.3X16	75/90	106	3
LBM623112M	60	31	M12	8.3X16	75/90	106	3
LBM623112H	60	31	M12	8.3X16	75/90	106	3

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

Additional info about stiffness, hardness etc available upon request.

MBM Medium Duty Bell Mounts

This mount offers a low profile, easy to install design with an integral fail-safe device to provide shock and failure protection for mobile, marine or seismic stationary applications. When the rubber works in shear and compression it provides large static deflections, low natural and high isolation. Our range is designed with a fail-safe function making it an ideal solution for applications where safety is paramount can accommodate loads approx. 20kg to approx. 132kg per Mount.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Gensets
Marine power engines
Diesel engines
Pumps
HVAC

Products can be loaded in :

Bell mount in use.

Height adjusters

Optional modifications / extras:

SKU	A	B	P	F	CF	L	S
MBM-3	63	34	M12	9.5	76	93	2
MBM-2	63	34	M12	9.5	76	93	2
MBM-0	63	34	M12	9.5	76	93	2

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

HBM Heavy Duty Bell Mounts

Heavy duty bell mounts allow a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. These Bell mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount, and can accommodate loads between approx. 46kg to approx. 978kg per Mount.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

Height adjusters

Optional modifications / extras:

SKU	A	B	P	F x M	CF	L	S
HBM603510W	60	35	M10	8.3X16	75/90	106	2
HBM603510M	60	35	M10	8.3X16	75/90	106	2
HBM603510H	60	35	M10	8.3X16	75/90	106	2
HBM603512W	60	35	M12	8.3X16	75/90	106	2
HBM603512M	60	35	M12	8.3X16	75/90	106	2
HBM603512H	60	35	M12	8.3X16	75/90	106	2
HBM623110W	60	31	M10	8.3X16	75/90	106	3
HBM623110M	60	31	M10	8.3X16	75/90	106	3
HBM623110H	60	31	M10	8.3X16	75/90	106	3
HBM623112W	60	31	M12	8.3X16	75/90	106	3
HBM623112M	60	31	M12	8.3X16	75/90	106	3
HBM623112H	60	31	M12	8.3X16	75/90	106	3
HBM773010W	77	30	M10	9	110	128	2
HBM773010M	77	30	M10	9	110	128	2
HBM773010H	77	30	M10	9	110	128	2
HBM823510W	82	35	M10	11	110	128	2
HBM823510M	82	35	M10	11	110	128	2
HBM924512W	92	45	M12	10.5	110	138	3
HBM924512M	92	45	M12	10.5	110	138	3
HBM924512H	92	45	M12	10.5	110	138	3
HBM1063812W	106	38	M12	14X18	138/146	172	3
HBM1063812M	106	38	M12	14X18	138/146	172	3
HBM1063812H	106	38	M12	14X18	138/146	172	3
HBM1063816W	106	38	M16	14X18	138/146	172	3
HBM1063816M	106	38	M16	14X18	138/146	172	3
HBM1063816H	106	38	M16	14X18	138/146	172	3
HBM1085016/5W	108	50	M16	16.5	160	190	5
HBM1085016/5M	108	50	M16	16.5	160	190	5
HBM1085016/5H	108	50	M16	16.5	160	190	5

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

HBMA Heavy Duty Bell Mounts

Heavy duty bell mounts allow a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. These Bell Mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount, and can accommodate a wider range of loads than our HBM range at approx. 49kg to approx. 2,284kg per Mount.

They also incorporate drain channels embossed within the bell section to assist removal of oil and other contaminants - preventing contact with the rubber section.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

Height adjusters

Optional modifications / extras:

SKU	A	B	P	F x M	CF	L	S
HBMA783010W	78	30	M10	9X12	110	135	2.5
HBMA783010M	78	30	M10	9X12	110	135	2.5
HBMA783012W	78	30	M12	9X12	110	135	2.5
HBMA783012M	78	30	M12	9X12	110	135	2.5
HBMA923510W	92	35	M10	10X15	123.5	150	3
HBMA923510M	92	35	M10	10X15	123.5	150	3
HBMA923512W	92	35	M12	10X15	123.5	150	3
HBMA923512M	92	35	M12	10X15	123.5	150	3
HBMA1063812W	106	38	M12	13X19	143	175	4
HBMA1063812M	106	38	M12	13X19	143	175	4
HBMA1063816W	106	38	M16	13X19	143	175	4
HBMA1063816M	106	38	M16	13X19	143	175	4
HBMA1254316W	125	43	M16	14.5X20	156	192	4
HBMA1254316M	125	43	M16	14.5X20	156	192	4
HBMA1444816W	144	48	M16	14.5X18	182	215	5
HBMA1444816M	144	48	M16	14.5X18	182	215	5

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

HBMB Heavy Duty Bell Mounts

Heavy duty bell mounts allow a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. These Bell Mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount, and can accommodate a wider range of loads than our HBM range at approx. 49kg to approx. 2,284kg per Mount.

They also incorporate drain channels embossed within the bell section to assist removal of oil and other contaminants - preventing contact with the rubber section.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

Height adjusters

Optional modifications / extras:

SKU	A	B	P	F x M	CF	L	S
HBMB1605820W	160	58	M20	14.5X18	140	170	5
HBMB1605820M	160	58	M20	14.5X18	140	170	5
HBMB1806620W	180	66	M20	14.5	160	190	5
HBMB1806620M	180	66	M20	14.5	160	190	5

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

HDBMA High Deflection Bell Mounts

This range of bell mounts offer high deflection to provide a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. Mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount. This range of mounts can accommodate loads between bapprox. 7kg to approx. 3,465kg per mount.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

SKU	A	B	P	F x M	CF	L	S
HDBMA1064212W	106	42	M12	14x18	138/146	172	3
HDBMA1064212M	106	42	M12	14x18	138/146	172	3
HDBMA1064212H	106	42	M12	14x18	138/146	172	3
HDBMA1064212XH	106	42	M12	14x18	138/146	172	3
HDBMA1064216W	106	42	M16	14x18	138/146	172	3
HDBMA1064216M	106	42	M16	14x18	138/146	172	3
HDBMA1064216H	106	42	M16	14x18	138/146	172	3
HDBMA1064216XH	106	42	M16	14x18	138/146	172	3
HDBMA1214216W	121	42	M16	13.5	158	188	3
HDBMA1214216M	121	42	M16	13.5	158	188	3
HDBMA1214216H	121	42	M16	13.5	158	188	3
HDBMA1444816XW	144	48	M16	14x18	179/186	216	4
HDBMA1444816W	144	48	M16	14x18	179/186	216	4
HDBMA1444816M	144	48	M16	14x18	179/186	216	4
HDBMA1444816H	144	48	M16	14x18	179/186	216	4

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

Height adjusters

Optional modifications / extras:

HDBMB High Deflection Bell Mounts

This range of bell mounts offer high deflection to provide a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. Mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount. This range of mounts can accommodate loads between bapprox. 7kg to approx. 3,465kg per mount.

HDBMB range also has the added benefit of an embossed bell to increase strength as well as provide drain points for any oil spillages.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Height adjusters

Optional modifications / extras:

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

SKU	A	B	P	F x M	CF	L	S
HDBMB1505016W	150	51	M16	n°4X13	132	168	4
HDBMB1505016M	150	51	M16	n°4X13	132	168	4
HDBMB1505016H	150	51	M16	n°4X13	132	168	4

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

HDBMC High Deflection Bell Mounts

This range of bell mounts offer high deflection to provide a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. Mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount. This range of mounts can accommodate loads between bapprox. 7kg to approx. 3,465kg per mount.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

Height adjusters

Optional modifications / extras:

SKU	A	B	P	F x M	CF	L	S
HDBMC633510W	63	35	M10	9x12	88	110	2
HDBMC633510M	63	35	M10	9x12	88	110	2
HDBMC633610W	63	36	M10	11x15	100	120	2.5
HDBMC633610M	63	36	M10	11x15	100	120	2.5
HDBMC833510W	83	35	M10	11.5x15	110	135	3
HDBMC833510M	83	35	M10	11.5x15	110	135	3
HDBMC833512W	83	35	M12	11.5x15	110	135	3
HDBMC833512M	83	35	M12	11.5x15	110	135	3
HDBMC1064212W	106	42	M12	13x19	143	175	4
HDBMC1064212M	106	42	M12	13x19	143	175	4
HDBMC1064216W	106	42	M16	13x19	143	175	4
HDBMC1064216M	106	42	M16	13x19	143	175	4
HDBMC1505416W	150	54	M16	14x18	182	218	4
HDBMC1505416M	150	54	M16	14x18	182	218	4

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

HDBMD High Deflection Bell Mounts

This range of bell mounts offer high deflection to provide a high level of insulation especially when used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections limited to guarantee good stability. Mounts are designed with a fail-safe function making it an ideal solution for applications where safety is paramount. This range of mounts can accommodate loads between bapprox. 7kg to approx. 3,465kg per mount.

HDBMD range also has the added benefit of an embossed bell to increase strength as well as provide drain points for any oil spillages.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.
Stiffness tolerance +/- 15%

SKU	A	B	P	F x M	CF	L	S
HDBMD1808620W	180	86	M20	14.5	146	190	5
HDBMD1808620M	180	86	M20	14.5	146	190	5
HDBMD2201052W	220	105	M24	17.5x20	180	220	5
HDBMD2201052M	220	105	M24	17.5x20	180	220	5

Additional info about stiffness, hardness etc available upon request.

Bell Mounts can withstand up to 2g of shock forces or 5g occasional shock forces with regard to the load without permanent deformation or failing .

Gensets
Engines
Tooling machinery
Pumps
Special equipment
HVAC

Products can be loaded in :

Height adjusters

Optional modifications / extras:
