CENTER BONDED MOUNTS

Centre Bonded Mountings are versatile, high-performance solutions used across a wide range of machinery to reduce vibration, limit noise, and absorb shock. Their robust rubber-to-metal bonded construction ensures reliable, long-lasting performance in even the most demanding operating environments.

Our two-piece mountings are manufactured from premium rubber compounds and engineered to deliver high-performance vibration reduction in all directions — providing consistent isolation across the full spectrum of dynamic loads. Our T Bushes combine exceptional build quality with extended service life and minimal maintenance requirements, offering superior protection for industrial equipment compared to conventional alternatives.

With their broad application compatibility and high-quality construction, Centre Bonded Mountings represent a reliable and cost-effective isolation solution for a wide variety of industries.

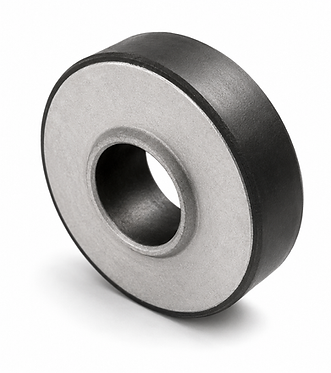

CGM Armoured Plate

Armoured Plate Mountings are engineered to introduce controlled flexibility within an installation, effectively reducing stress on brackets and fabricated structures. They are typically installed in pairs on opposing sides of a bracket, enabling vibration isolation in both the positive and negative directions — making them well-suited to applications where bidirectional load management is required.

An integral wear plate is incorporated into the mounting design, preventing premature failure caused by frictional wear between the rubber element and the mounting bracket — significantly extending service life and reducing maintenance requirements.

For correct installation, it is recommended that a shouldered or plain shank bolt is used to ensure the mounting is not overcompressed during assembly, preserving the integrity and performance of the rubber element over its full service life.

ChatGPT Image Aug 5, 2026, 03_35_53 PM.png

Construction Equipment
Power Generation
Military Vehicles
Off-Road
Agricultural
Radiators

Products can be loaded in :

SKU	A	B	C	E	F	S
CGM3615166	6	6	15	16	6	1
CGM3615106	6.2	6.2	15	10	6	1
CGM362083	16.6	16.6	20	8	3	1
CGM361883	16.6	18	20	8	3	1
CGM3618104	8.5	12	18	10	4	1
CGM50241210	16.5	20	24	12	10	1.5
CGM50241212	16.5	22	24	12	12	1
CGM60271310	20.5	24	27	13	10.5	1.5
CGM6027134	20.5	24	27	13	4	1.5
CGM6027304	20.5	24	27	30	4	1.5

Additional info about stiffness, hardness etc available upon request.

RTM Reinforced Two Piece Mountings

Two Piece Mountings are a highly effective solution for reducing vibration and accommodating high shock forces across a wide range of applications. Their design also introduces controlled flexibility within an installation, helping to reduce stress on brackets and fabricated structures — extending the service life of surrounding components.

The top section incorporates an integral metal plate that minimises wear between the mounting and its supporting bracket, enhancing durability and reducing the need for frequent maintenance.

Suitable for both static and mobile applications, Two Piece Mountings should always be installed with top and bottom washers to provide a fully failsafe mounting arrangement — ensuring reliable performance and protection under all operating conditions.

Construction Equipment
Power Generation
Military Vehicles
Off-Road
Agricultural
Radiators

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_17_46 AM.png

SKU	A	B	F1	D2	L1	L2	L3	D1	F1	S1	D	S	R
RTM6050W	58	6	16.2	39.5	26	49.5	18	65	16	4	41	15	1
RTM6050M	58	6	16.2	39.5	26	49.5	18	65	16	4	41	15	1
RTM6050H	58	6	16.2	39.5	26	49.5	18	65	16	4	41	15	1

Additional info about stiffness, hardness etc available upon request.

TM Two Piece Mountings

The top section incorporates an integral metal plate that minimises wear between the mounting and its supporting bracket, enhancing durability and reducing the need for frequent maintenance.

ChatGPT Image Aug 5, 2026, 10_37_22 AM.png

Construction Equipment
Power Generation
Military Vehicles
Off-Road
Agricultural
Radiators

Products can be loaded in :

SKU	A	B	F1	D2	L1	L2	L3	D1	F1	S1	D	S	R
TM5050W	50	10	13	32	30	50	20	55	12.2	3.5	31	15	1.5
TM5050M	50	10	13	32	30	50	20	55	12.2	3.5	31	15	1.5
TM6562W	65	16	16.5	40	42	61.7	23	70	16	4	39	22	2.3
TM6562M	65	16	16.5	40	42	61.7	23	70	16	4	39	22	2.3
TM8973W	89	19	24	57	50.5	73	25	99	24	4	57	28	3
TM8973M	89	19	24	57	50.5	73	25	99	24	4	57	28	3

Additional info about stiffness, hardness etc available upon request.

TI Grommet Mountings

Grommet Mountings provide a simple and versatile fastening solution, designed to isolate high-frequency vibrations across a wide range of applications. Their compact, self-contained design makes them easy to install and suitable for use in space-constrained environments.

These mountings can be configured in several ways to suit different installation requirements — including through-bracket and blind hole installations — offering engineers maximum flexibility in their design and assembly processes.

Vehicle & Machinery Body Panels
Motorcycle Fairing
Lightweight Equipment
Electronics & CPU’s
Sensors & Gauges

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_37_41 AM.png

SKU	D	K	L	H	G
TI09	7.2	9	9	2.5	M3
TI12	9.3	12	11.5	3	M4
TI15	10.2	15	14.5	3.5	M5
TI18	12.7	18	17	4	M6
TI24	16.5	24	22	5	M8

Additional info about stiffness, hardness etc available upon request.

T Bushes

T-Bush Mountings offer a cost-effective solution for vibration isolation, structure-borne noise reduction, and shock absorption across both mobile and static applications. Their low-profile design makes them particularly well-suited to installations where space and height constraints are a consideration.

When used in conjunction with Overload and Rebound washers, T-Bush Mountings deliver a fully failsafe installation — providing reliable protection and consistent performance under all operating conditions.

Fuel Tanks
Radiators
Pumps
Industrial Equipment

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_37_29 AM.png

SKU	A	B	C	D	E	F	H	D1	Sd	R	T	F1	S1
T3027F	32	10	24	36	27.2	14	13	38	22.7	1.5	9.7	10	2
T3027G	32	10	24	36	27.2	14	13	38	22.7	1.5	9.7	10	2
T5137H	51	13	35	51	37	19	17.5	65	31.8	1.5	12.7	12	3
T6038H	60	17.1	37	53	39.2	17	16	70	35.1	1.5	15.7	16	4
T6344H	63.5	16	41.2	50.8	44.5	14.2	14.2	74	38.1	1.5	19.1	16	4

Additional info about stiffness, hardness etc available upon request.

RT Mountings

This range of mountings delivers exceptional fail-safe dynamic insulation, with particular effectiveness in the vertical direction — performing reliably under both traction and compression loading conditions. Designed to significantly reduce vibrations and absorb considerable shock forces, they provide an outstanding all-round isolation solution across a broad spectrum of demanding applications.

Specially engineered for installations requiring through-assembly configurations, these mountings are ideally suited to agricultural machines, tractors, off-road equipment, and military vehicles — environments where robust, dependable performance under extreme operating conditions is non-negotiable.

Engines
Radiators
Cabs

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_37_50 AM.png

SKU	d	D	I	L	d2	L1	D1	D3	D4	S	S1
RT1659.1640	16.2	59	16	40	25	58	80	60	85	16	min 5
RT1659.1640W	16.2	59	16	40	25	58	80	60	85	16	min 5
RT2059.1640	20	59	16	40	30	58	80	60	85	16	min 5
RT2059.1640W	20	59	16	40	30	58	80	60	85	16	min 5

Additional info about stiffness, hardness etc available upon request.

RE Ring Elements

Ring Elements offer a versatile and cost-effective solution for shock absorption and vibration reduction across a wide range of applications. Available in a comprehensive selection of sizes and rubber compounds, and with the choice of mild or stainless steel metal components, they can be specified to meet the precise requirements of virtually any installation environment.

Their simple yet effective design makes Ring Elements a practical and reliable choice for engineers seeking a flexible, off-the-shelf isolation solution.

Bump stops for General Industrial Machinery
Pump & Compressor Feet
Commercial & Off-Road Vehicles

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_37_58 AM.png

SKU	D1	D2	d	H
4223RE18	42	40	18	23
6233RE21	62	60	21	33
7233RE21	72	70	21	33
8240RE25	82	80	25	40
10254RE32	102	100	32	54
12246RE38	122	120	38	46

Additional info about stiffness, hardness etc available upon request.

SKU	D	d	H
RE8.5/3.2-3.5	8.5	3.2	3.5
RE13/6.5-12	13	6.5	12
RE17.5/9-16	17.5	9	16
RE19/13-19	19	13	19
RE20/8.5/15	20	8.5	15
RE25/8.5-25	25	8.5	25
RE25/10.5-25	25	10.5	25
RE25/10.5-15	25	10.5	15
RE28/10.5-50	28	10.5	50
RE28/8-16	28	8	16
RE30/16-40	30	16	40
RE32/13.5-32	32	13.5	32
RE40/9-30	40	9	30
RE40/12-25	40	12	25
RE40/12-35	40	12	35
RE40/12-65	40	12	65
RE40/13-30	40	13	30
RE40/13.5-32	40	13.5	32
RE40/13.5-40	40	13.5	40
RE40/13.5-50	40	13.5	50
RE40/17-30	40	17	30
RE47/20-50	47	20	50
RE48/17-100	48	17	100
RE50/17-25	50	17	25
RE50/17-40	50	17	40
RE50/10-45	50	10	45
RE50/14-80	50	14	80
RE50/17-32	50	17	32
RE50/17-50	50	17	50
RE50/17-63	50	17	63
RE50/17-80	50	17	80
RE58/17-100	58	17	100
RE50/20-38	50	20	38
RE50/24-50	50	24	50
RE50/24.8-50	50	24.8	50
RE53/32.5-100	53	32.5	100
RE60/20-40	60	20	40
RE70/40-40	70	40	40
RE75/18-40	75	18	40
RE80/15-50	80	15	50
RE80/20-27	80	20	27
RE80/20-40	80	20	40
RE80/21-30	80	21	30
RE80/25-40	80	25	40
RE80/25-82	80	25	82
RE80/30-35	80	30	35
RE80/40-30	80	40	30
RE80/21-100	80	21	100
RE90/30-45	90	30	45
RE100/21-40	100	21	40
RE100/25-40	100	25	40
RE100/25-70	100	25	70
RE100/26-40	100	26	40
RE100/30-35	100	30	35
RE100/33-40	100	33	40
RE100/33-75	100	33	75
RE100/40-70	100	40	70
RE100/70-40	100	70	40
RE120/25-40	120	25	40
RE120/40-40	120	40	40
RE120/50-40	120	50	40
RE125/35-125	125	35	125
RE125/50-125	125	50	125
RE150/51-100	150	51	100
RE150/45-180	150	45	180
RE160/33-160	160	33	160
RE200/61-100	200	61	100
RE200/33-200	200	33	200
RE250/60-200	250	60	200

Additional info about stiffness, hardness etc available upon request.
