INSTRUMENT MOUNTS

We offer a comprehensive range of high-performance instrument and antivibration mountings, engineered to suit a wide variety of industrial equipment and machinery applications.

Our low-frequency mountings are specifically designed for lightweight and precision-sensitive equipment — including precision instruments, medical devices, and sensitive electronic systems — where controlled vibration isolation at low load levels is essential.

Some of our mountings provide reliable shock and vibration protection for sensitive equipment, while others offer versatile, low-stiffness solutions suitable for marine equipment, radiators, and a broad spectrum of industrial applications.

With a comprehensive selection of sizes, configurations, and rubber compounds available, our instrument mountings deliver consistent, dependable isolation performance across the full range of industrial environments.

LF Low Frequenct Mounts

Our low-frequency mountings are high-performance solutions engineered specifically for lightweight equipment. Designed to deliver high levels of deflection under light loads, they provide a low natural frequency and exceptional vibration isolation — effective for both active and passive isolation requirements.

These versatile mountings can be configured for use in compression, shear, or a combination of both, offering engineers maximum flexibility across a wide range of application types. High-temperature and oil-resistant rubber compounds are available on request for more demanding operating environments.

Precision Equipment
Sensitive Instruments
Lightweight Machines
Medical Equipment
Sensors & Gauges

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_16_54 AM.png

SKU	A	B	C	D	E
LF0912	12.5	9.5	9.4	M4	10
LF1394	17	14	14	M4	10
LF1395	30	25	19	M5	10
LF1396	38.5	35	25	M6 (*M10)	16

* Alternative Stud Size

Additional info about stiffness, hardness etc available upon request.

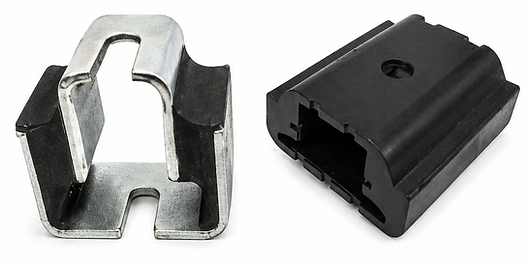

UU Shear Mounts

UU Shear Mountings are engineered to load the rubber element in shear, delivering a soft vertical spring rate and outstanding levels of vibration absorption. Their design also makes them highly effective at absorbing shock, providing reliable protection across a wide range of applications.

These mountings are available in two distinct variants — those featuring zinc-plated metal components, and those where the metal elements are fully encapsulated in rubber — allowing the most appropriate solution to be selected based on the specific environmental and performance requirements of the application.

Small Generators
Fans
Sensitive instruments & Apparatus
Low Speed Machines
Shock Protection

Products can be loaded in :

SKU	A mm	B mm	C mm	D mm	E mm	F mm	G & H mm
UU1492-40	61	20	43	25	27	20	6.6
UU1492-50	61	20	43	25	27	20	6.6
UU1482-40	60	50	43	19	30	17	10
UU1482-50	60	50	43	19	30	17	10
UU1481-40	70	25	62	37	43	25	10
UU1481-50	70	25	62	37	43	25	10
UU1481-60	70	25	62	37	43	25	10
UU1480-40	80	50	78	50	55	30	13
UU1480-50	80	50	78	50	55	30	13
UU1480-60	80	50	78	50	55	30	13
UU1479-40	86	64	108	76	82	38	16
UU1479-50	86	64	108	76	82	38	16
UU1479-60	86	64	108	76	82	38	16

Additional info about stiffness, hardness etc available upon request.

UUR Shear Mounts Fully Encapsulated in Rubber

Small Generators
Fans
Sensitive instruments & Apparatus
Low Speed Machines
Shock Protection

Products can be loaded in :

SKU	A mm	B mm	C mm	D mm	E mm	F mm	G & H mm
UUR20-40	90	20	50	34	34	39	10
UUR20-60	90	20	50	34	34	39	10
UUR20-70	90	20	50	34	34	39	10
UUR50-40	90	50	50	34	34	39	12
UUR50-60	90	50	50	34	34	39	12
UUR50-70	90	50	50	34	34	39	12
UUR100-40	90	100	50	34	34	39	15
UUR100-60	90	100	50	34	34	39	15
UUR100-70	90	100	50	34	34	39	15

Additional info about stiffness, hardness etc available upon request.

AM Angled Anti Vibration Mounts

Angle Mountings are designed to be installed in pairs, positioned diametrically opposite one another. This configuration delivers a low roll frequency, resulting in improved vibration isolation while maintaining excellent stability of the mounted equipment — striking the ideal balance between isolation performance and structural control.

Portable Generators
Compressors
Pumps

Products can be loaded in :

SKU	A	B	D	C1	C2	e	a	F	G
AM47	47	17	M8	35	15	3	40°	29	23.0
AM54	54	19	M8	35	15	3	40°	37	31.0

Additional info about stiffness, hardness etc available upon request.

LM Shear Mountings

LM Shear Mountings are robust, single-piece rubber-to-metal bonded components designed to load the rubber element in shear. Their distinctive L-shaped profile provides a soft, compliant spring rate that delivers effective vibration isolation and shock absorption across a wide range of industrial and mobile applications.

The two-bolt fixing arrangement — one at the top and one at the base — ensures a secure, straightforward installation. The all-rubber outer surface provides additional protection against corrosion and environmental exposure, making these mountings particularly well-suited to harsh operating environments.

Agricultural and construction machinery
Industrial generators and compressors
Marine engine mounts
Off-road and heavy vehicles

Isolators can be loaded in :

Conveyor and material handling equipment
HVAC and pump installations
Railway and transportation equipment
Electronic enclosures and instrument panels requiring shock protection

ChatGPT Image Aug 5, 2026, 10_17_23 AM.png

SKU	A	B	C	D	E	F
LM20-2	90	20	58	40	62	8

Additional info about stiffness, hardness etc available upon request.

W Mountings

W and V Type Mountings are versatile, high-performance solutions designed for use in both compression and shear loading configurations. Their distinctive rubber profile geometry enables high levels of deflection to be achieved even under relatively low loads, delivering exceptional vibration isolation and shock absorption performance.

This combination of flexibility and load adaptability makes W and V Type Mountings an ideal choice for a broad range of applications where effective isolation across varying load conditions is required.

Small Generators
Slow Speed Machines (Fans etc)
Electronics
Shock Protection Units

Products can be loaded in :

Additional info about stiffness, hardness etc available upon request.

V Mountings

Small Generators
Slow Speed Machines (Fans etc)
Electronics
Shock Protection Units

Products can be loaded in :

Additional info about stiffness, hardness etc available upon request.

OS Cup Shock Mountings

Cup Shock Mountings are a robust, relatively stiff solution engineered for applications where high-frequency vibrations are predominant. Their failsafe design makes them suitable for both mobile and static installations, offering reliable performance across a wide range of operating environments.

The outer metal cap provides effective protection against contaminants such as oil and fuel, enhancing durability and service life in demanding conditions. The mounting design also permits use in tension, though maximum load ratings should be appropriately derated when used in this configuration.

Military Equipment
Electronics
HVAC
Motors & Compressors

Products can be loaded in :

SKU	A	B	C	D	E	F
OS1000	50	28	M8	50	6	60
OS2000	76	38	M10	63.5	6.7	76

Additional info about stiffness, hardness etc available upon request.

OP Plate Mounting

Plate and Pedestal Mountings are low-stiffness solutions ideally suited to lightweight equipment applications where a soft, compliant mount is required. Available in two distinct configurations — Plate Mounting and Pedestal Mounting — they offer flexibility in installation to suit a variety of design requirements.

Both variants can be made fully failsafe by fitting top and bottom washers, providing an additional layer of protection and ensuring reliable performance under all operating conditions.

Control Panels
Sensitive Instruments
Radiators
Marine Equipment
Fans
Blowers

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_17_02 AM.png

SKU	A	B	C	D	E	F	G	H
OP1800	31.75	25.4	25.4	4.20	3.60	6.70	0.80	10.3
OP1801	44.5	34.9	38.1	6.5	4.2	8.9	1.3	15.9
OP1802	57.2	44.5	50.8	9.9	5.0	13.5	1.5	25.4

Additional info about stiffness, hardness etc available upon request.

OL Pedestal Mounting

Both variants can be made fully failsafe by fitting top and bottom washers, providing an additional layer of protection and ensuring reliable performance under all operating conditions.

Military Equipment
Electronics
HVAC
Motors & Compressors

Products can be loaded in :

SKU	D	C	H	J	K	M	N	P
OL1803	4.20	25.4	10.3	42.9	34.9	3.60	0.60	19.8
OL1804	6.5	38.1	15.9	60.3	49.2	5.0	0.8	28.6
OL1805	9.9	50.8	25.4	76.0	63.5	6.5	0.94	39.7

Additional info about stiffness, hardness etc available upon request.

SU and SL Suspended Mounts

Suspended Mountings are purpose-designed for hanging or suspending equipment from walls, vertical surfaces, ceilings, and supporting structures — providing effective vibration isolation in installations where conventional base-mounted solutions are not suitable.

Available in two complementary variants, the SU (Upper) mounting is designed to accommodate tensile loads at the top fixing point of the equipment, while the SL (Lower) mounting handles the compressive loads at the base. Together, they provide a complete and balanced suspension solution for a wide range of equipment types and installation environments.

HVAC
Ducting and Pipework
Instrument Cabinets
Control panels

Products can be loaded in :

ChatGPT Image Aug 5, 2026, 10_17_11 AM.png

SKU	E	K	A	H	d	N	t	G
SU	75	114	96	33	9	15	2.5	M8
SL	75	114	96	33	9	15	2.5	M8

Additional info about stiffness, hardness etc available upon request.
