BUMP STOPS

The main purpose of rubber bump stops and rubber buffers is to serve as a cushion, protecting your machinery against impact shocks from external moving components. In addition, conical buffers can be used for both primary and secondary suspension of industrial vehicles and equipment.

Our range of rubber bump stops and rubber buffers include male buffers, female buffers, tapered buffers, conical buffers and more; all specialy made to suit your unique requirements.

Rubber buffers are a crucial component in vibration prevention. Their low-cost and easy installation makes them a must for absorbing shock and vibration. Commonly found in automotive, industrial, and construction applications, they provide cushioning between parts, minimizing wear and tear. Durable and flexible, rubber buffers enhance equipment longevity and ensure smoother, quieter operations.

MB Flat Buffers

Male Flat Buffers provide a low cost solution for absorbing Shock and Vibration. They are easy to install, and typically used to reduce the force of an impact from a secondary object. Alternatively they can be used as an elastic element, where the rubber remains in direct contact with a surface. They are manufactured from 1st Grade Natural Rubber which can accommodate high deformation and high stresses. On request, they are also available in High Damped Rubber.

Our Male Buffers are also available with various configurations of additional sizes and metals available on request. The Male Buffers are typically used when it can be easily secured with a thread nut or threaded female fixing. They can additionally be used as machinery feet.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Additional Sizes, Stainless Steel metals and Oil,
Fuel & Heat Resistant rubbers available on request.

Construction Equipment
General Industrial machinery
Agricultural Machinery and Equipment
Commercial Vehicle
Lifts and Elevators

Products can be loaded in :

Male Flat Buffer in use.

SKU	D x H	d x L	45° Shore A	60° Shore A	70° Shore A	mm
4040MB25	40 x 40	M10 x 25	97.0	145.5	199.0	10.0
5015MB25	50 x 15	M10 x 25	283.0	422.0	581.0	3.8
5018MB25	50 x 18	M10 x 25	360.0	480.0	690.0	4.0
5020MB28	50 x 20	M10 x 28	343.0	511.0	705.0	5.0
5021MB25	50 x 21	M10 x 25	344.0	514.0	708.0	5.3
5025MB25	50 x 25	M10 x 25	300.5	446.0	616.0	6.3
5030MB25	50 x 30	M10 x 25	247.0	364.0	504.0	7.5
5040MB25	50 x 40	M10 x 25	170.0	252.0	349.0	10.0
5045MB25	50 x 45	M10 x 25	150.5	223.0	310.5	11.3
5050MB25	50 x 50	M10 x 25	136.0	203.5	281.5	12.5
6025MB37	60 x 25	M12 x 37	436.0	640.0	883.0	7.5
6040MB25	60 x 40	M10 x 25	378.0	562.5	766.0	10.0
6040MB37	60 x 40	M12 x 37	378.0	562.5	766.0	10.0
6050MB37	60 x 50	M12 x 37	300.0	446.0	616.0	12.5
7035MB25	70 x 35	M10 x 25	548.0	873.5	1203.0	8.8
7035MB37	70 x 35	M12 x 37	548.0	873.5	1203.0	8.8
7040MB25	70 x 40	M10 x 25	494.5	737.0	1019.0	10.0
7040MB37	70 x 40	M12 x 37	494.5	737.0	1019.0	10.0
7045MB25	70 x 45	M10 x 25	436.5	650.0	873.0	11.25
7045MB37	70 x 45	M12 x 37	436.5	650.0	873.0	11.25
7525MB37	75 x 25	M12 x 37	883.0	1339.0	1843.0	6.25
7530MB37	75 x 30	M12 x 37	879.0	1309.0	1807.0	7.50
7540MB37	75 x 40	M12 x 37	533.0	960.0	1310.0	10.00
7550MB37	75 x 50	M12 x 37	495.0	737.0	1018.5	12.50
7555MB37	75 x 55	M12 x 37	427.0	640.0	883.0	13.76
8030MB35	80 x 30	M14 x 35	1028.0	1552.0	2134.0	7.50
8080MB35	80 x 80	M14 x 35	407.0	601.5	824.5	20.50
10030MB41	100 x 30	M16 x 41	1821.0	3648.0	4920.0	7.50
10040MB44	100 x 40	M16 x 44	1600.0	2376.0	3250.0	10.00
10050MB44	100 x 50	M16 x 44	1358.0	2022.0	2794.0	12.50
10055MB44	100 x 55	M16 x 44	1251.0	1891.0	2570.0	13.75
10060MB44	100 x 60	M16 x 44	1115.0	1649.0	2275.0	15.00
100100MB44	100 x 100	M16 x 44	630.0	936.0	1290.0	25.00
0808MB06	08 x 08	M3 x 06	7.5	10.5	15.0	2.0
1008MB10	10 x 08	M4 x 10	9.5	14.0	19.5	2.0
1508MB10	15 x 08	M4 x 10	31.0	45.5	63.0	2.0
1513MB10	15 x 13	M4 x 10	14.5	22.5	31.0	3.3
1618MB10	16 x 18	M4 x 10	16.0	23.5	33.0	5.0
2008MB18	20 x 08	M6 x 18	46.5	68.0	94.0	2.0
2012MB18	20 x 12	M6 x 18	40.0	59.5	82.0	3.0
2015MB18	20 x 15	M6 x 18	34.0	51.5	71.0	3.75
2020MB18	20 x 20	M6 x 18	26.0	39.0	53.5	5.0
2025MB18	20 x 25	M6 x 18	27.0	41.0	56.5	6.25
2030MB18	20 x 30	M6 x 18	21.5	31.0	43.5	7.5
2508MB18	25 x 08	M6 x 18	114.0	190.0	231.0	2.0
2510MB20	25 x 10	M8 x 20	106.5	155.0	213.5	2.5
2515MB18	25 x 15	M6 x 18	68.0	104.0	145.5	3.75
2518MB20	25 x 18	M8 x 20	69.5	102.0	141.0	4.25
2520MB18	25 x 20	M6 x 18	63.0	93.0	126.0	5.0
2520MB20	25 x 20	M8 x 20	63.0	93.0	126.0	5.0
2525MB18	25 x 25	M6 x 18	44.5	66.0	92.0	6.25
2530MB20	25 x 30	M8 x 20	58.0	77.5	7.5
3012MB20	30 x 12	M8 x 20	97.0	139.5	201.0	3.25
3015MB20	30 x 15	M8 x 20	88.3	132.0	184.5	3.75
3017MB20	30 x 17	M8 x 20	82.0	121.0	167.0	4.25
3020MB20	30 x 20	M8 x 20	75.5	113.5	155.0	5.00
3022MB20	30 x 22	M8 x 20	69.0	102.0	140.5	5.50
3025MB20	30 x 25	M8 x 20	63.0	97.0	131.0	6.25
3030MB20	30 x 30	M8 x 20	52.5	77.5	106.5	7.50
3040MB20	30 x 40	M8 x 20	53.5	78.5	108.5	10.0
4020MB23	40 x 20	M8 x 23	155.0	233.0	333.5	5.0
4020MB25	40 x 20	M10 x 25	155.0	233.0	333.5	5.0
4025MB25	40 x 25	M10 x 25	136.0	204.0	281.5	6.3
4028MB25	40 x 28	M8 x 25	124.0	184.5	252.0	6.8
4030MB20	40 x 30	M8 x 20	116.5	174.5	242.5	7.5
4030MB25	40 x 30	M10 x 25	116.5	174.5	242.5	7.5
4035MB25	40 x 35	M8 x 25	103.0	153.0	213.5	8.8
4040MB23	40 x 40	M8 x 23	97.0	145.5	199.0	10.0

Additional info about stiffness, hardness etc available upon request.

FB Flat Buffers

Female Flat Buffers offer an economical solution for absorbing shock and vibration. Easy to install, they are commonly used to lessen the impact force from secondary objects. Alternatively, they can function as an elastic element, with the rubber staying in direct contact with a surface. Made from high-quality, first-grade natural rubber, they can withstand significant deformation and high stress. High-damping rubber options are also available upon request.

The Female Buffers are typically used when the fixing length is not easily defined and the use of a socket screw allows ease of installation.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Additional Sizes, Stainless Steel metals and Oil,
Fuel & Heat Resistant rubbers available on request.

Construction Equipment
General Industrial machinery
Agricultural Machinery and Equipment
Commercial Vehicle
Lifts and Elevators

Products can be loaded in :

SKU	D x H	d	45° Shore A	60° Shore A	70° Shore A	mm
1510FB04	15 x 10	M4	26.5	35.0	47.0	2.5
1515FB04	15 x 15	M4	21.0	30.5	42.5	3.75
1520FB04	15 x 20	M4	15.5	23.0	32.0	5.0
2015FB06	20 x 15	M6	34.5	52.5	72.5	3.75
2020FB06	20 x 20	M6	26.5	39.5	54.5	5.0
2025FB06	20 x 25	M6	27.5	41.5	57.5	6.25
2030FB06	20 x 30	M6	22.0	31.5	44.5	7.5
2515FB06	25 x 15	M6	69.0	106.0	148.5	3.75
2517FB06	25 x 17	M6	67.5	101.0	140.0	4.25
2520FB06	25 x 20	M6	64.5	95.0	128.5	5.0
2525FB06	25 x 25	M6	45.5	67.5	94.0	6.25
2530FB06	25 x 30	M6	39.5	59.5	79.0	7.50
3015FB08	30 x 15	M8	90.0	134.5	188.0	3.75
3017FB08	30 x 17	M8	83.0	129.5	175.0	4.25
3020FB06	30 x 20	M6	77.0	116.0	158.5	5.0
3025FB08	30 x 25	M8	55.5	84.0	119.0	6.25
3030FB08	30 x 30	M8	53.5	79.0	109.5	7.5
3040FB08	30 x 40	M8	54.5	80.0	111.0	10.0
4020FB08	40 x 20	M8	158.0	238.0	327.0	5.00
4020FB10	40 x 20	M10	158.0	238.0	327.0	5.00
4025FB08	40 x 25	M8	139.0	208.0	287.0	6.25
4027FB08	40 x 27	M8	125.5	186.5	255.7	6.75
4028FB10	40 x 28	M10	127.0	188.0	257.0	7.00
4030FB08	40 x 30	M8	119.0	178.0	248.0	7.50
4030FB10	40 x 30	M10	119.0	178.0	248.0	7.50
4035FB08	40 x 35	M8	105.0	156.0	218.0	8.75
4040FB08	40 x 40	M8	99.0	148.0	203.0	10.00
5021FB10	50 x 21	M10	352.0	525.0	723.0	5.00
5025FB10	50 x 25	M10	307.0	455.0	629.0	6.25
5030FB12	50 x 30	M12	252.0	371.0	515.0	7.50
5040FB10	50 x 40	M10	173.0	257.0	356.0	10.00
5045FB10	50 x 45	M10	153.0	228.0	317.0	11.25
5050FB10	50 x 50	M10	139.0	208.0	287.0	12.50
6025FB10	60 x 25	M10	525.0	683.0	1079.0	6.25
6040FB10	60 x 40	M10	386.0	574.0	780.0	10.0
6040FB12	60 x 40	M12	386.0	574.0	780.0	10.0
6045FB10	60 x 45	M10	347.0	515.0	713.0	11.25
6050FB12	60 x 50	M12	307.0	455.0	629.0	12.50
7040FB10	70 x 40	M10	505.0	752.0	1040.0	10.0
7040FB12	70 x 40	M12	505.0	752.0	1040.0	10.0
7045FB10	70 x 45	M10	446.0	663.0	890.0	11.25
7045FB12	70 x 45	M12	446.0	663.0	890.0	11.25
7050FB10	70 x 50	M10	396.0	594.0	822.0	12.5
7050FB12	70 x 50	M12	396.0	594.0	822.0	12.5
7525FB12	75 x 25	M12	900.0	1365.0	1880.0	6.25
7540FB12	75 x 40	M12	545.0	980.0	1337.0	10.00
7550FB12	75 x 50	M12	505.0	752.0	1030.0	12.50
7555FB12	75 x 55	M12	435.0	653.0	900.0	13.75
8040FB14	80 x 40	M14	743.0	1109.0	1535.0	10.00
8080FB14	80 x 80	M14	416.0	614.0	842.0	20.00
10030FB16	100 x 30	M16	1821.0	3648.0	4920.0	7.50
10040FB16	100 x 40	M16	1633.0	2425.0	3316.0	10.00
10050FB16	100 x 50	M16	1386.0	2064.0	2850.0	12.50
10055FB16	100 x 55	M16	1277.0	1930.0	2624.0	13.75
10060FB16	100 x 60	M16	1139.0	1683.0	2322.0	15.00
100100FB16	100 x 100	M16	644.0	955.0	1317.0	25.00

Additional info about stiffness, hardness etc available upon request.

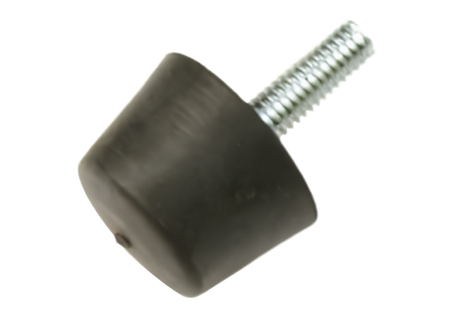

MTBA Tapered Buffers

Tapered Buffers are ideal for absorbing shock. They provide high levels of deformation under impact force, and a progressive stiffness rate to accommodate varying shock forces, thus giving excellent levels of absorption and protection of machinery and fabrications.

We stock Tapered Buffers in a range of sizes and threads to cover a wide range of installations. If you need advice on which size is suitable for your requirements, get in touch with one of our experienced team members: they will be happy to help.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Stainless Steel Metals, Synthetic rubber compounds and Female Fixings
available on request.

Primary and Secondary suspension for vehicles
Bump stops for general Industrial Machinery
Assister springs
Construction and Agricultural Machinery.

Products can be loaded in :

SKU	D	H	d	L
1212MTBA10	12	12	M4	10
1406MTBA04	14	6	M4	4
2512MTBA18	25	12	M6	18
2514MTBA10	25	14	M4	10
2517MTBA18	25	17	M6	18
3627MTBA20	36	27	M8	20
4521MTBA46	45	21	M8	46
5018MTBA28	50	18	M10	28
5020MTBA20	50	20	M10	20
5050MTBA28	50	50	M10	28
12545MTBA45	125	45	M16	45

Additional info about stiffness, hardness etc available upon request.

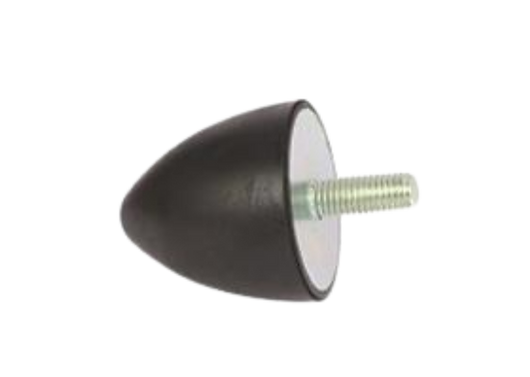

MCB Conical Buffers

Conical Buffers are ideal for absorbing shock. They provide high levels of deformation under impact force, and a progressive stiffness rate to accommodate varying shock forces, thus giving excellent levels of absorption and protection of machinery and fabrications.

Conical rubber buffers are ideal for cushioning shock loads and providing overload protection such as within suspension systems. The conical buffer applications are varied which include vibratory conveyor systems and door stops.

SKU	D x H	d x L	45° Shore A	60° Shore A	70° Shore A	mm
1010MCB12	10 x 10	M5 x 12	2.3	4.6	6.7	2.25
2015MCB10	20 x 15	M6 x 10	9.8	19.7	28.9	3.75
2024MCB18	20 x 24	M6 x 18	6.9	13.8	20.3	6.25
2425MCB18	24 x 25	M6 x 18	35	51	71	6.25
2514MCB20	25 x 14	M8 x 20	35	50	70	3.5
2516MCB16	25 x 16	M6 x 16	32	64	94.08	4.0
3030MCB14	30 x 30	M6 x 14	37.0	54.0	74.0	5.0
3540MCB23	35 x 40	M8 x 23	15.3	30.6	45.0	10.0
4535MCB23	45 x 35	M8 x 23	96.0	140.0	193.0	7.5
5050MCB25	50 x 50	M10 x 25	117.0	170.0	233.0	12.5
5068MCB25	50 x 58	M8 x 20	147.0	214.0	293.0	15.0
5061MCB28	50 x 61	M8 x 28	135	240	265	14.5
5064MCB35	50 x 64	M8 x 35	127.0	185.0	253.0	16.0
5067MCB33	50 x 67	M8 x 33	120	170	240	16.0
5068MCB38	50 x 68	M10 x 38	120	170	240	16.2
6040MCB60	60 x 40	M14 x 62	209.0	305.0	418.0	10.0
6060MCB37	60 x 60	M12 x 37	195.0	286.0	395.0	15.0
7058MCB32	70 x 58	M8 x 32	164.4	328.8	483.3	13.7
7060MCB35	70 x 60	M12 x 35	210.0	360.0	410.0	17.5
7589MCB37	75 x 89	M12 x 37	95.2	190.4	247.9	21.2
9580MCB45	95 x 80	M16 x 45	407.0	594.0	814.0	20.0
10095MCB31	105 x 95	M12 x 31	225.0	450.0	680.0	24.0
100100MCB31	100 x 100	M12 x 31	220.0	440.0	660.0	23.0
100120MCB31	100 x 121	M12 x 31	210.0	420.0	630.0	30.0
11877MCB41	118 x 77	M16 x 41			18.2

Additional info about stiffness, hardness etc available upon request.

Primary and Secondary suspension for vehicles
Pump stops for general
Industrial Machinery
Assister springs
Construction and Agricultural Machinery

Products can be loaded in :

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Stainless Steel Metals, Synthetic rubber compounds and Female Fixings available on request.

PB Plate Buffers

Plate buffers provide a Heavy Duty solution for absorbing high levels of shock and impact forces. The large rubber section allows for high levels of deformation, ensuring that the impact energy is dissipated effectively.

The plate rubber buffers with mild steel flange and pre-drilled bolt holes mean they are extremely versatile. A variety of sizes are available for the plate buffer stops, also available with aluminium metals.

SKU	D1	D2	D3	A	H	d	S	Max kg
PB335	84.0	46	32.0	68.6	19	6.9	3.2	750.0
PB238	121.0	86	57.0	105.0	56	8.6	6.3	4200.0
PB15	150.0	90	60.0	125.0	50	10.0	6.0	3000.0
PB260	156.0	88	64.0	127.0	36	13.5	5.0	2400.0

Additional info about stiffness, hardness etc available upon request.

Construction Equipment and Vehicles
Agricultural Vehicles
Commercial Vehicles
General Industrial Machinery

Products can be loaded in :

SPB Square Plate Buffers

Square Plate buffers provide a Heavy Duty solution for absorbing high levels of shock and impact forces. The large rubber section allows for high levels of deformation, ensuring that the impact energy is dissipated effectively.

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

SKU	D1	A	D2	d	H	S	Max kg
SPB50	50	40	40	5.5	32	2	1430
SPB63	63	50	50	6.5	40	3	1730
SPB75	100	75	75	9	60	3	2040
SPB80	80	63	63	6.5	50	4	2755
SPB100	100	80	80	9	63	5	3775
SPB125	125	100	100	9	80	6	6630
SPB130	130	100	100	11	78	6	6500
SPB1700-2	160	135	125	13	70	6	10000
SPB160	160	125	125	11	100	6	9890
SPB200	200	160	160	11	125	8	16315
SPB250	250	200	200	13	160	8	24470

Additional info about stiffness, hardness etc available upon request.

Construction Equipment and Vehicles
Mining and Quarry Equipment
Agricultural Vehicles
Lifts and Elevators
General Industrial Machinery

Products can be loaded in :

MTBB Tapered Buffers

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Stainless Steel Metals, Synthetic rubber compounds and Female Fixings
available on request.

Primary and Secondary suspension for vehicles
Bump stops for general Industrial Machinery
Assister springs
Construction and Agricultural Machinery.

Products can be loaded in :

SKU	D1	D2	H	d	L
3835MTBB27	38	30	35	M10	27
4335MTBB27	43	30	35	M10	27
4350MTBB25	43	30	50	M10	25

Additional info about stiffness, hardness etc available upon request.

MTBC Tapered Buffers

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Stainless Steel Metals, Synthetic rubber compounds and Female Fixings
available on request.

Primary and Secondary suspension for vehicles
Bump stops for general Industrial Machinery
Assister springs
Construction and Agricultural Machinery.

Products can be loaded in :

SKU	D	H	d	L
2417MTBC20	24	17	M8	20
2516MTBC20	25	16	M8	20
4024MTBC28	40	24	M8	28
5028MTBC28	50	28	M8	28
5045MTBC35	50	45	M10	35
6045MTBC28	60	45	M10	28
8565MTBC37	85	65	M12	37

Additional info about stiffness, hardness etc available upon request.

MCBB Conical Buffers

SKU	D x H	d x L	45° Shore A	60° Shore A	70° Shore A	mm
MCB3460	70 x 46	M12 x 30	178.0	260.0	356.0	11.5

Additional info about stiffness, hardness etc available upon request.

Primary and Secondary suspension for vehicles
Pump stops for general
Industrial Machinery
Assister springs
Construction and Agricultural Machinery

Products can be loaded in :

Stainless Steel option available.
Natural rubber NR
Zinc plated in accordance with CE standards.

Stainless Steel Metals, Synthetic rubber compounds and Female Fixings available on request.
