Sandwich and Machinery Mounts

CFM Cast Foot Mounts

Cast Foot Mountings are engineered for heavy-duty industrial machinery and large reciprocating equipment, delivering exceptional load-bearing capacity and reliable vibration isolation. Designed to operate in shear/compression, they effectively support high loads while providing vibration reduction of up to 98%, ensuring smoother operation and reduced equipment wear.

Manufactured with a robust cast construction, these mountings offer outstanding strength, long service life, and dependable performance in demanding applications. For mobile equipment and safety-critical installations, they can also be supplied with integrated fail-safe stops to provide additional protection and operational security. Load range from 30kg to 1800kg per mounting.

Diesel Engines
Generator Sets
Compressors
Fans
Pumps
Industrial Machinery

Products can be loaded in :

Cast foot mount in use.

SKU	A	B	C	D	E	F	G	H
CFM290	132	82	13	M16	122	114	90	71.5
CFM213	204	146	18	M16	230	205	165	110
CFM346	204	146	18	M16	230	205	165	120

Additional info about stiffness, hardness etc available upon request.

RSM Sandwich Mounts

Sandwich Mountings are designed to provide effective vibration isolation and shock absorption for industrial machinery and equipment. Featuring rubber bonded between metal components, they offer reliable performance under compression, shear loads or under combination of both. They help reduce vibration, minimize noise, and enhance equipment durability.

Engine mountings
Generator sets
Heavy plant
Machinery
Vibratory Screens

Products can be loaded in :

SKU	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Kg	mm
RSM322-45	110	57	43	64	89	11	5	190	3
RSM322-60	110	57	43	64	89	11	5	375	3
RSM322-70	110	57	43	64	89	11	5	500	2.6
RSM284-45	127	57	43	84	108	11	5	300	3
RSM284-60	127	57	43	84	108	11	5	600	3
RSM284-70	127	57	43	84	108	11	5	800	2.6
RSM242-45	168	57	43	127	146	11	5	450	3
RSM242-60	168	57	43	127	146	11	5	850	2.8
RSM242-70	168	57	43	127	146	11	5	1000	2.2

Additional info about stiffness, hardness etc available upon request.

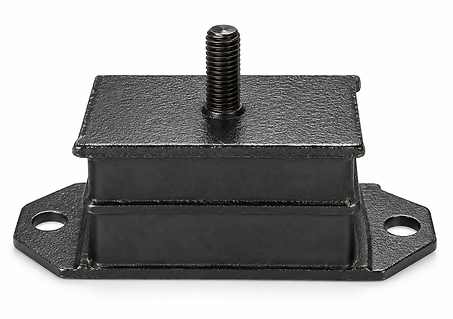

MRSM Sandwich Mounts

Sandwich Mountings are designed to provide effective vibration isolation and shock absorption for industrial machinery and equipment. Featuring rubber bonded between metal components, they offer reliable performance under compression, shear loads or under combination of both. They help reduce vibration, minimize noise, and enhance equipment durability.

Engine mountings
Generator sets
Heavy plant
Machinery
Vibratory Screens

Products can be loaded in :

SKU	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Kg	mm
MRSM406-45	90	40	36	54	74.5	6.8	3.5	95	2.8
MRSM406-50	90	40	36	54	74.5	6.8	3.5	135	2.8
MRSM406-60	90	40	36	54	74.5	6.8	3.5	200	2.8
MRSM406-70	90	40	36	54	74.5	6.8	3.5	310	2.8

Additional info about stiffness, hardness etc available upon request.

SSM Sandwich Mounts

Sandwich Mountings are designed to provide effective vibration isolation and shock absorption for industrial machinery and equipment. Featuring rubber bonded between metal components, they offer reliable performance under compression, shear loads or under combination of both. They help reduce vibration, minimize noise, and enhance equipment durability.

SKU	L	B	CF	F	S
SSM150WKG	150	65	126	11	8
SSM150KMG	150	65	126	11	8
SSM174KG	174	75	146	14	5
SSM174MG	174	75	146	14	5

Products can be loaded in :

Measurement equipment
Instruments
Small machinery
Engines
Pumps
Radiators

Additional info about stiffness, hardness etc available upon request.

SWM Sandwich Mounts

Sandwich Mountings are designed to provide effective vibration isolation and shock absorption for industrial machinery and equipment. Featuring rubber bonded between metal components, they offer reliable performance under compression, shear loads or under combination of both. They help reduce vibration, minimize noise, and enhance equipment durability.

Measurement equipment
Instruments
Small machinery
Engines
Pumps
Radiators

Products can be loaded in :

SKU	L	B	CF	F	S
SWM150W	166	63	136	13.5	6
SWM150M	166	63	136	13.5	6
SWM150H	166	63	136	13.5	6

Sandwich mount in use.

Additional info about stiffness, hardness etc available upon request.

LR Rail Mounts

Rail Mountings are robust, heavy-duty isolators engineered for supporting large plant and industrial machinery. Available in lengths up to 2 meters with multiple mounting configurations, they are suitable for compression, shear, or combined loading applications, providing reliable vibration isolation, high load capacity, and long-lasting performance.

Power Generation
Pumps
Heavy Plant & Machinery

Isolators can be loaded in :

Rail mountings can be supplied in two types

Bottom metal only

Top and bottom metal

SKU	B	H	M5	M10	M15
LR2030	20	30	✓	✓	x
LR2525	25	25	✓	✓	x
LR2530	25	30	✓	✓	x
LR3020	30	20	✓	✓	x
LR3030	30	30	✓	✓	x
LR4020	40	20	✓	✓	x
LR4030	40	30	✓	✓	x
LR4040	40	40	✓	✓	x
LR5030	50	30	✓	✓	x
LR5040	50	40	✓	✓	x
LR5050	50	50	✓	✓	x
LR5060	50	60	✓	✓	x
LR5070	50	70	✓	✓	x
LR6020	60	20	✓	✓	x
LR6030	60	30	✓	✓	x
LR6040	60	40	✓	✓	x
LR6050	60	50	✓	✓	x
LR6060	60	60	✓	✓	x
LR6070	60	70	✓	✓	x
LR6080	60	80	✓	✓	x
LR7030	70	30	✓	✓	x
LR7040	70	40	✓	✓	x
LR7050	70	50	✓	✓	x
LR7060	70	60	✓	✓	x
LR7070	70	70	✓	✓	x
LR7080	70	80	✓	✓	x
LR8040	80	40	✓	✓	x
LR8045	80	45	✓	✓	x
LR8060	80	60	✓	✓	x
LR8080	80	80	✓	✓	x
LR9045	90	45	x	✓	✓
LR10040	100	40	x	✓	✓
LR10050	100	50	x	✓	✓
LR10060	100	60	x	✓	✓
LR10070	100	70	x	✓	✓
LR10080	100	80	x	✓	✓
LR10090	100	90	x	✓	✓
LR100100	100	100	x	✓	✓
LR12045	120	45	x	✓	✓
LR12050	120	50	x	✓	✓
LR12060	120	60	x	✓	✓
LR12070	120	70	x	✓	✓
LR12080	120	80	x	✓	✓
LR15050	150	50	x	✓	✓
LR15060	150	60	x	✓	✓
LR15070	150	70	x	✓	✓
LR15080	150	80	x	✓	✓
LR15090	150	90	x	✓	✓
LR150100	150	100	x	✓	✓
LR20060	200	60	x	✓	✓
LR20080	200	80	x	✓	✓
LR200100	200	100	x	✓	✓

Additional info about stiffness, hardness etc available upon request.
